Description pneumatic hand pump pressure gauge calibrator
XY-2002 high pressure gas pressure calibrator is developed by our company for high pressure, medium pressure, low pressure gas pressure and vacuum pressure source.The product use high quality stainless steel and aluminum alloy materials,with advanced aviation sealing technology and sealing materials, refined through a variety of processing technology, the unique structure of the product and is easy to operate .Could be used for checking the pressure gauge, pressure transmitter, pressure sensor and other pressure instruments as well as vacuum pressure gauge .

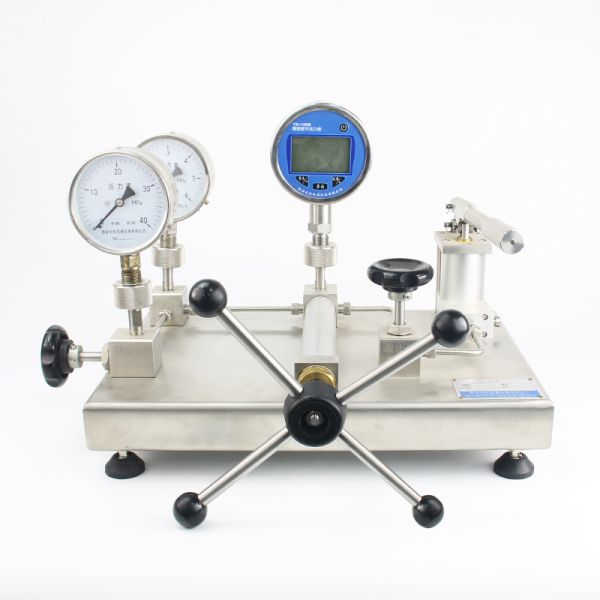

Detailed Images pneumatic hand pump pressure gauge calibrator
Specification pneumatic hand pump pressure gauge calibrator
1.Create pressure range: (-0.095 ~ 10) MPa.
2.Selection: XY-2002a (-0.095 ~ 4) MPa Low
XY-2002b (-0.095 ~ 6) MPa pressure
XY-2002c (-0.095 ~ 10) MPa high-pressure
3.Output size: M20 * 1.5 (based on field instrumentation interfaces can provide a variety of different adapters, see pressure accessories)
4.Minimum controllable adjustment degree: 10Pa
5.Output Interface: M20 × 1.5 (three)
6.Dimension: 300mm × 300mm × 150mm
7.Weight: 10kg
Features pneumatic hand pump pressure gauge calibrator
1.Pressure transmission medium is clean and free of impurities of water, do not pollute the environment
2.Out of the oil-water separator, oil water separator to avoid isolating membrane rupture pressure source pollution and on the instruments were seized after the oil into the hidden dangers.
3. Special screw-down device, making steady boost and back check, easy to operate.
4. solve the traditional check valve control loop instability.
5. tiled open structure, easy maintenance and repair.
6. Unique exhaust mechanism, no do not create pressure on the pressure and difficult phenomenon.
7. medium efflux, avoiding dirty recycled to the pressure medium source pollution.
