4 20mA 10V 250 PSI Micro Fused Strain Gauge High Pressure Transmitter For Water Oil

Brand Name : YunYi

Model Number : YD31

Place of Origin : China

MOQ : 1pc

Price : USD26.0/PC-USD46.0/PC

Payment Terms : T/T, Western Union, D/A, D/P

Supply Ability : 1000PCS per month

Delivery Time : 10days

Packaging Details : Standard export carton box 4-20ma absolute gauge smart water pressure transmitter sensor

Name : 4 20mA 10V Sensor 250 PSI Micro fused Strain Gauge High Pressure Transmitter for Water Oil Air Hydraulics

range : 0-20Mpa

accuracy : 0.5% FS

power supply : 24VDC

Pressure connection : 1/2npt

Output : 4-20mA pressure transducer

Application : Chemical Industry

Sensor : Diffused silicon pressure transducer

Type : gauge pressure transmitter

Contact Now

4 20mA 10V Sensor 250 PSI Micro fused Strain Gauge High Pressure Transmitter for Water Oil Air Hydraulics

Product description 4-20ma absolute pressure intelligent water pressure transmitter sensor

YD31 pressure transmitter adopts imported sensor core body, small stainless steel isolated structure, compact appearance and easy installation. With a wide range and a variety of output signals, this product has good stability in a wide temperature range and is widely used in refrigeration, air conditioning equipment and air compressors.

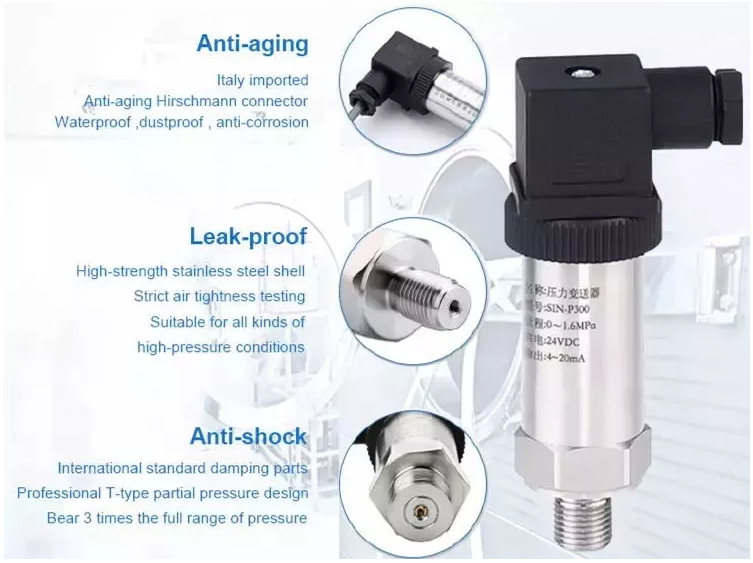

Detailed Images 4-20ma absolute gauge smart water pressure transmitter sensor
4 20mA 10V 250 PSI Micro Fused Strain Gauge High Pressure Transmitter For Water Oil4 20mA 10V 250 PSI Micro Fused Strain Gauge High Pressure Transmitter For Water Oil
4 20mA 10V 250 PSI Micro Fused Strain Gauge High Pressure Transmitter For Water Oil
Specification 4-20ma absolute gauge smart water pressure transmitter sensor
Measure Range -100kPa~0.....10kPa...100MPa
Pressure Type gauge (G), absolute (A), sealed gauge (S)
Overpressure 150%FS
Accuracy 0.2%FS, 0.5%FS
Output signal 4-20mA(2-wire), 0-5V;1-5V;0.5-4.5V;0-10V(3-wire)
Supply 12-36Vdc,12~36Vdc;15~30Vdc;15~36Vdc;15~36Vdc;5Vdc
Temp.coefficient of zero ±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Temp.coefficient of span ±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Compensated temperature range -10~+70°C
Operating temperature range -40~+125°C
Storage temperature range -40~+125°C
Insulating resistance ≥100MΩ@100Vdc
Load resistance R≤(U-15)/0.02 (for 4/20mA) R>100kΩ(for voltage output)
Electrical interface DIN43650, option 1.5m cable connetion
Pressure interface G1/2,M20x1.5,G1/4, 1/4NPT, 1/2NPT(customer request)
Material of pressure membrane 316L stainless steel
Material of housing 1Cr18Ni9Ti stainless steel
Response time(10%~90%) ≤10ms
Shock/impact 10gRMS,(20~2000)Hz/100g,11ms
Protection IP65
Dimension 4-20ma absolute gauge smart water pressure transmitter sensor
4 20mA 10V 250 PSI Micro Fused Strain Gauge High Pressure Transmitter For Water Oil
Application 4-20ma absolute gauge smart water pressure transmitter sensor

Absolute gauge smart pressure transmitter is widely used in a variety of industrial automation environment, involving water conservancy and hydropower, railway transportation, intelligent building, production control, aerospace, military, petrochemical, oil wells, electricity, ships, machine tools, pipes and many other industries.

4 20mA 10V 250 PSI Micro Fused Strain Gauge High Pressure Transmitter For Water Oil

Selection Guide 4-20ma absolute gauge smart water pressure transmitter sensor

Model YD31
Pressure Range
(0-X)KPa or MPa: -100kPa~0.....10kPa...100MPa
Pressure type
G Gauge D Differential A Absolute

Output signal
E 4-20mA F 0-5Vdc J 1-5Vdc

K 0-10Vdc V 1-10Vdc

Power Supply

A1 10~36VDC

Electrical Interface
B1 Hirschman connector

B2 Directly cable connection

B3 Pin aviation connector

Display

D1 No display

D2 LED display

Pressure Interface
C1 1/2NPTM C2 1/4NPTM

C3 M20x1.5M C4 G1/2M

C5 G1/4M Cx other customized

4 20mA 10V 250 PSI Micro Fused Strain Gauge High Pressure Transmitter For Water Oil

4 20mA 10V 250 PSI Micro Fused Strain Gauge High Pressure Transmitter For Water Oil
